Cases - Henan Tianfon New Energy Tech. Co., Ltd

2025-07-07

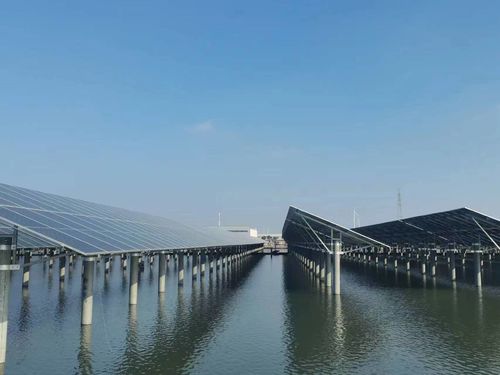

250MW centralized photovoltaic power generation EPC project

Project Overview Located in Jiangsu, the project spans over a vast water body, utilizing flooded or underutilized aquaculture ponds to host elevated solar panel structures. By employing a "solar-above, fish-below" dual-use model, the project not only maximizes land efficiency but also enhances environmental sustainability and economic benefits for local communities. Key features of the project include: Installed Capacity: 250 Megawatts (MW) EPC Model: Full Engineering, Procurement, and Construction responsibilities undertaken by a leading PV system integrator Design Type: Water-surface-mounted solar PV arrays using pile-driven foundations Annual Power Output: Estimated to exceed 300 million kWh, enough to power over 150,000 households annually Carbon Offset: More than 250,000 tons of CO₂ emissions reduced each year Engineering The construction of the project posed several technical challenges, from pile driving in underwater environments to ensuring corrosion resistance and structural stability. Leveraging high-quality galvanized steel mounting structures, custom-designed racking systems, and modular floating platforms, the project team successfully overcame these obstacles. Advanced monitoring systems have also been integrated into the design, allowing for real-time performance analytics and smart O&M (Operation & Maintenance), ensuring long-term efficiency and reliability.

Daha fazlasını izle

2020-12-16

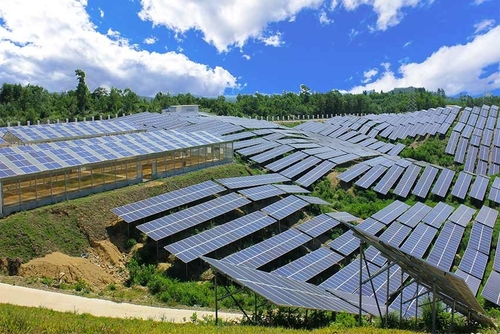

PV Green House Mounting System

Photovoltaic greenhouse is a new way of photovoltaic application. It is a greenhouse that integrates solar photovoltaic power generation, intelligent temperature control system and modern high-tech planting. Project Type：Agricultural PV Greenhouse Terrain: Hilly Area Location : Tunchang County, Hainan Province of China Project Capacity：20MW Compared with the construction of centralized large-scale photovoltaic ground power stations, photovoltaic agricultural technology greenhouse projects have many advantages. It combines photovoltaic power generation and modern agriculture organically, which not only does not occupy additional cultivated land, but also adds value to the original land.

Daha fazlasını izle

2020-12-16

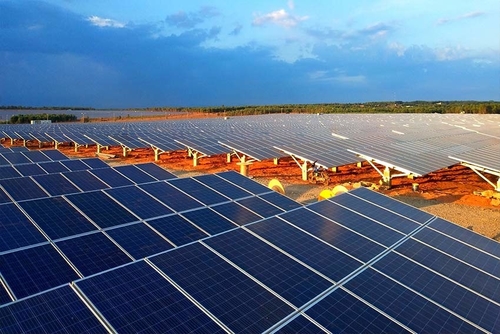

Solar Power Generation Project 81.24MW located in Pakistan

Solar photovoltaic project for Pakistan customers Project Type：Ground Fixed Mounting System Location: Pakistan Project Capacity：81.24MW The Solar Mounting structure is used to fix the solar PV panels and gives a support and inclination to the system. It is suitable for both small and large-scale solar plants .with a flexible connection, it can be installed onto the concrete base, and also the earth ground, even the slope can also be workable.

Daha fazlasını izle

2020-12-16

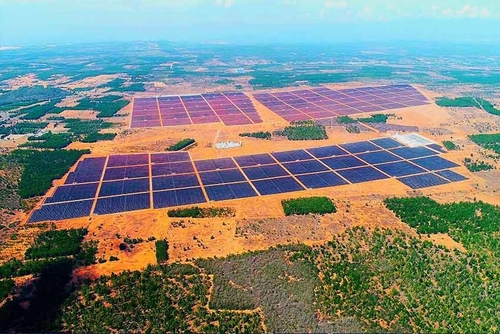

Ground Solar Power Generation Project 350MW located in Hong Phong of Vietnam

Solar photovoltaic project for Vietnam customers Project Type：Ground Fixed Mounting System Location: Hong Phong of Vietnam Project Capacity：350MW Solar Ground Mounting System is applicable to flat concrete roof and a large array PV system in open terrain. This system is designed to engineer with a minimum amount of installed footing at greatly reduce labor. The special tilt-in module, the clamp, and the system can be modified to be installed that make the installation easy and quick. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Daha fazlasını izle

2020-12-16

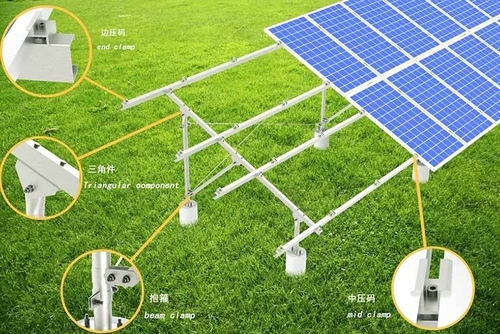

Ground Fixed Mounting System

The ground mounting system is a universal adjustable angle column installation system. The patented track has good component compatibility and convenient installation, which saves users installation time and costs, and strict quality control to ensure product performance and lifespan, the system can be compatible with most photovoltaic brackets on the market. Adaptable to most land conditions, high corrosion resistance, low foundation cost, short installation time. Project Reference: 1. Solar Power Generation Project 83MW located in Delinha, Qinghai Province of China

Daha fazlasını izle

2020-12-16

Mongolia

Enclosed please find our latest Company Catalogue; Product Range: Solar Mountings & Steel Structure; Annual Production Capability: 8 GW; Certificates: CE, ISO 9001:2015, ISO14001:2015, OHSAS18001, SGS, TUV , etc;

Daha fazlasını izle

2020-12-16

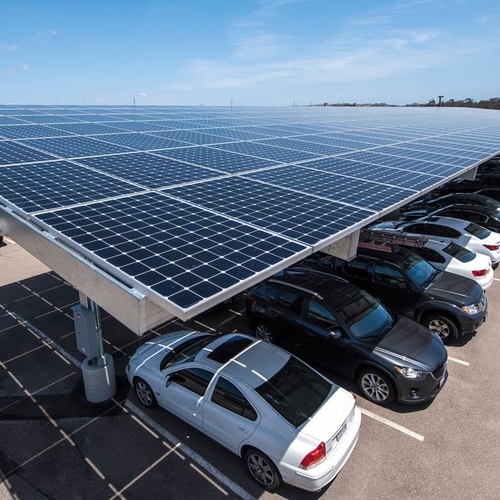

50MW project in Danmark

Test

Daha fazlasını izle
